High-Thermal-Stability Zirconia Substrate – YSZ Ceramic Base Plate for High-Temperature Electronics, Power Modules & Solid Oxide Fuel Cells (SOFC)

Name: HighThermalStability Zirconia Substrate YSZ Ceramic Base Plate for HighTemperature Electronics Power Modules amp Solid Oxide Fuel Cells SOFC
Brand: XQCERA
Price: 0.01 USD

Quality High-Thermal-Stability Zirconia Substrate – YSZ Ceramic Base Plate for High-Temperature Electronics, Power Modules & Solid Oxide Fuel Cells (SOFC) for sale

Brand Name : XQCERA

Model Number : Customization

Certification : ISO9001

Place of Origin : Hunan, China

MOQ : 100

Price : $0.01-0.05/units

Packaging Details : Carton; Pallet

Material : Zirconia Ceramic

Application : Industrial Ceramic

Processing Service : Cutting, Moulding, Punching

Type : Ceramic Plate

Zirconia Content : Y-TZP , Mg-PSZ, Ce-TZP

Bulk Density : 6.0 - 6.05 g/cm³

Water Absorption : 0%

Hardness : Vickers 1200 - 1400 HV, Mohs ~8.5

Flexural Strength : 800 - 1200 MPa

Product Type : Ceramic Plate

Size Tolerance : ±0.001mm

Color : Ivory White / Milky White

Raw Material : Zirconia

Density : 5.9 - 6.1 G/cm³

Fracture Toughness : 5 - 10 MPa·m¹/²

Compressive Strength : 2000 - 2500 MPa

Coefficient Of Thermal Expansion : ~10.5 X 10⁻⁶ /K

Maximum Operating Temperature : 800 - 1000 °C (long-term For TZP)

Thermal Conductivity : 2 - 3 W/(m·K)

Wear & Corrosion Resistance : Excellent

Electrical Insulation : Volume Resistivity >10¹⁰ Ω·cm (at 500°C)

Surface Finish & Aesthetics : Can Be Polished To Mirror Finish (Ra < 0.02 μm)

Contact Now

High-Thermal-Stability Zirconia Substrate – YSZ Ceramic Base Plate for High-Temperature Electronics, Power Modules & Solid Oxide Fuel Cells (SOFC)

Category	Performance	Usage

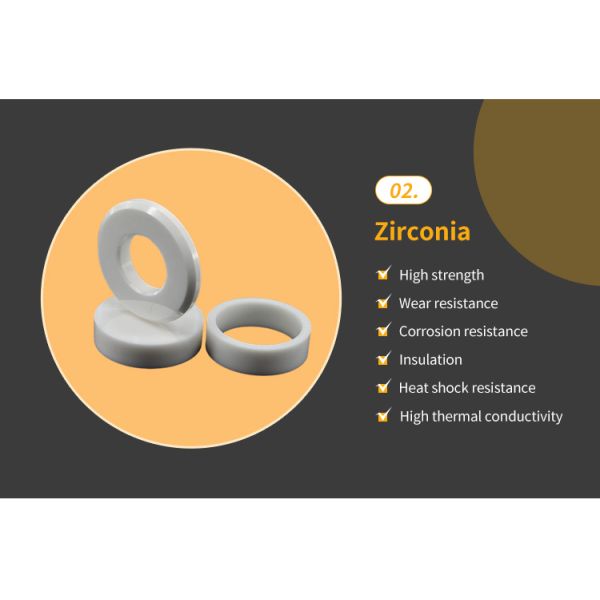

Zirconia	High strength, high wear resistance, high resistivity, high fracture toughness, adiabatic, high refractive index	1. Home appliances, automotive electronics, communications, lightning protection facilities, defense, medical, new energy, semiconductor and other fields. 2. Customized structural ceramics of various shapes and sizes to meet the needs of different customers.

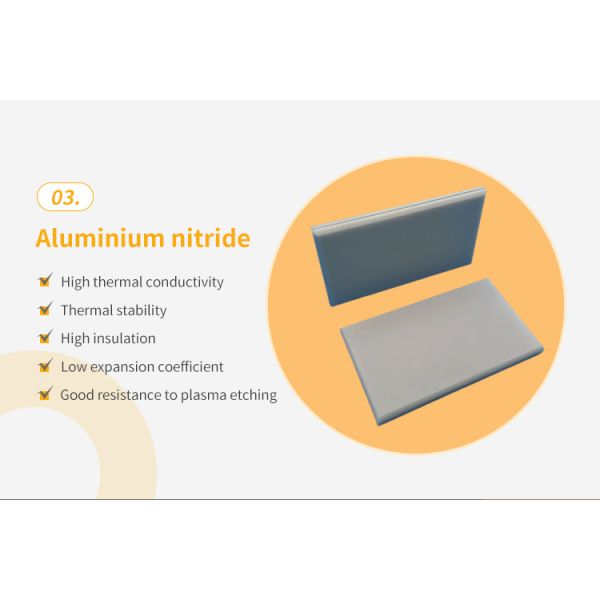

Aluminium nitride	High thermal conductivity, thermal stability, high insulation, low expansion coefficient, good resistance to plasma etching
Aluminium oxide	High density, wear resistance, corrosion resistance, high temperature resistance

In the field of ceramic, microwave materials, rotary ferrite research and development, manufacturing, the company has self-developed, technology-leading molding technology, digital, systematic, intelligent, large-scale production base, skilled, united and enterprising high-tech personnel. At present, the production of functional ceramic products are 95/96/99 alumina, aluminum nitride, silicon nitride, zirconia products, mainly including sealing ceramic parts, wear-resistant ceramic parts, and electric vacuum devices for ceramics, dielectric ceramics and other more than 10 kinds of products. Products are widely used in home appliances, communications, lightning protection facilities, medical, new energy, semiconductor and other fields.

Are you a trading company or a manufacturer?

We are a manufaturer.

Do you accept customized production based our specification?

Yes,we offer OEM and ODM service. Just send us your drawing if you have it. If you don’t have a drawing, just tell us your idea, we will work out the drawing for you.

What's the delivery time?

1-7 days for customized products.

What is the MOQ?

No limit to the quantity. We can offer the best proposal and solutions according to your condition.
